Start with capability, not the connector shape
Two USB-C sockets can look identical but support different functions. A laptop might charge through one port but not another, or support a monitor only through a port with the required video capability. The cable and dock must also support the job being asked of them.
Check the specification for the exact model, not just the product family. A USB-C connector is not automatically a Thunderbolt port. A dock advertised as compatible with USB-C may offer different features depending on the host connection. Microsoft's USB-C guidance separates charging, display and device-compatibility problems for this reason.
The most useful question is whether the same combination worked before. A monitor that has never worked through this port suggests a compatibility check first. A previously reliable setup that now disconnects suggests a change or fault, although the cable or dock may be responsible rather than the laptop.
Separate the three main USB-C symptoms
| What fails | Test separately | Possible explanation |
|---|---|---|
| Laptop will not charge | Correct charger directly into a supported charging port | Charger, cable, power negotiation or laptop fault |
| Monitor reports no signal | Compatible video cable and monitor without the dock | Port capability, cable, display settings or hardware |
| USB storage is not detected | Known-working accessory through a compatible direct connection | Data path, driver, accessory or port |
| Everything disconnects through one dock | Dock power and a direct laptop connection | Dock, upstream cable or host connection |
| Connector needs pressure to work | Stop manipulating it | Physical damage requiring inspection |
These comparisons narrow the path. They do not establish that a motherboard or socket needs replacing.
USB-C charging: more than whether the plug fits
Use a charger and cable that meet the laptop maker's requirements. A small phone charger may fit the socket without providing the power profile or output the laptop needs. A cable can also limit what the combination can deliver. Charging through a dock adds another power budget to consider.
Test the correct charger directly rather than through the dock, where the laptop supports this. Note whether the machine reports a slow charger, runs from external power without charging the battery, or shows no response. Those are different observations. Do not repeatedly wiggle a loose connector to maintain contact.
Our laptop not charging guide explains the wider charger and battery checks. This article concentrates on the shared USB-C connection, so it should not be used to assume every charging fault is a USB-C port fault.
USB-C monitor problems can be compatibility problems
A cable sold for charging may not carry the required video signal. Some displays connect through DisplayPort Alternate Mode or Thunderbolt, while other docking products use a different display technology and need their own supported software. Check the documentation for the laptop, dock and display together.
Select the correct monitor input and check Windows display settings. If the laptop has another supported display output, compare it using a suitable cable. Microsoft's external-monitor checks provide a useful software and connection sequence. A working monitor on another port is evidence, not proof that the USB-C socket itself is damaged.
Avoid buying a series of adapters based only on their connector shapes. Record the dock model and cable type so the intended connection can be checked before spending more money.
Data works, but charging or video does not
Partial functionality is possible because the complete connection has several requirements. A mouse working through the port does not prove that high-power charging or video output must work. Equally, successful charging does not prove that the data path is healthy.
Use a known-working, non-critical accessory for a data test. Do not use the only copy of important work as a test device. If a storage device disconnects or asks to be formatted, stop treating it as an ordinary port test and use the external-drive safety guide.
For USB devices failing on several ports, the general USB fault guide helps separate an individual connector from a wider device or software problem.
Physical damage and liquid exposure change the advice
A socket that is visibly loose, discoloured or damaged needs inspection. Do not insert a pin or metal tool to clean it, apply contact cleaner without model-specific guidance, or hold the cable at an angle while charging. Disconnect external power safely if there is a burning smell or abnormal heat.

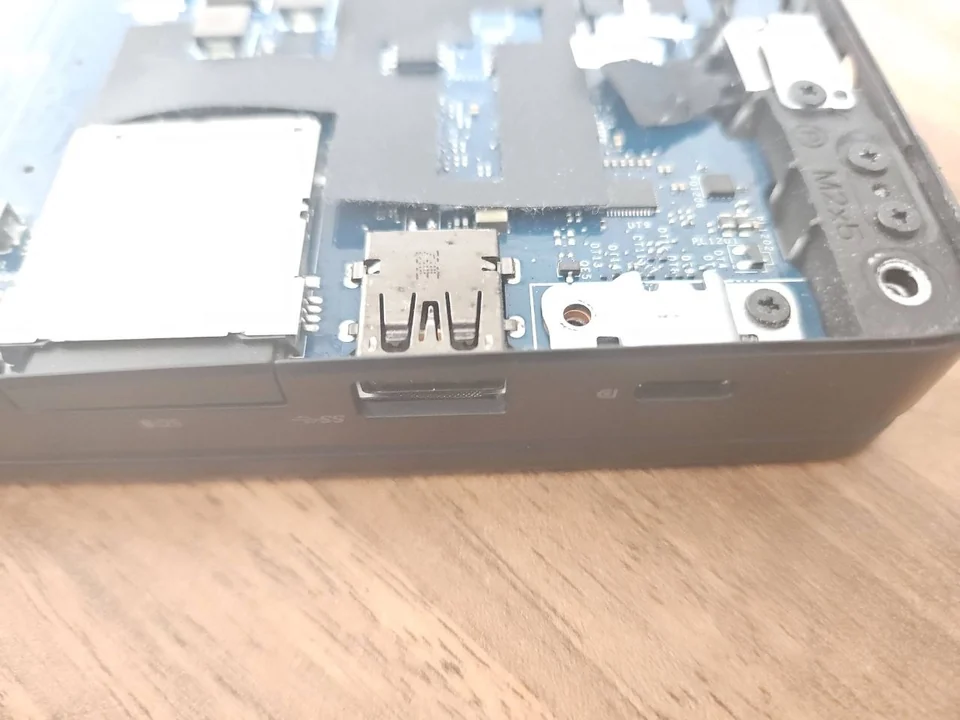

Some sockets are part of a replaceable daughterboard; others are attached to the main board. The quote should follow identification of the damaged part and any related circuitry. Replacing the socket will not necessarily repair damage elsewhere in the power path.
What to bring for USB-C diagnosis in Birmingham
Bring the laptop, correct charger, suspect cable and dock. List which functions fail and whether the problem occurs on every USB-C port. A short description such as "charges directly, but not through this dock" is far more useful than "USB-C broken".
PC Repair Guru's laptop diagnosis service can assess the connection before recommending parts. Keep the original accessories available during testing: a port may behave correctly with one setup and expose a compatibility or cable problem with another.
Frequently asked questions
Should every USB-C port charge my laptop?
No. Charging support depends on the port and laptop design. Confirm the exact model's specification and use the required charger and cable before treating a non-charging port as faulty.
Why does USB-C charge my laptop but not show a monitor?
Charging and video have different capability requirements. Check the laptop port, cable, dock and display compatibility, along with the selected monitor input and Windows display mode.
Can a USB-C port be repaired without replacing the motherboard?
Sometimes, but the design and damage decide the route. A separate board, socket repair or wider electrical repair may be involved. A physical inspection and functional tests should precede the quote.
